Fantastic Tips About How To Check MOSFET With Multimeter

Demystifying the MOSFET

1. Unveiling the MOSFET Mystery

So, you've got this little component, a MOSFET, and you suspect it might be the culprit behind some electronic shenanigans. Fear not! Checking a MOSFET with a multimeter isn't as intimidating as it sounds. Think of your multimeter as a detective, and the MOSFET as our suspect. We're here to gather the evidence and determine if it's guilty (faulty) or innocent (working fine).

What even is a MOSFET, you ask? Simply put, it's a transistor used to switch or amplify electronic signals. They're the unsung heroes in countless devices, from power supplies to motor controls. Because they handle a lot of current, they can sometimes fail, and that's when knowing how to check them becomes invaluable. We're not diving into the deep end of semiconductor physics here; we just want to know if the darn thing works!

Before you even grab your multimeter, a quick visual inspection can sometimes save you time. Look for any obvious signs of damage, such as cracks, burns, or bulging. If it looks like it's been through a war zone, chances are it's toast. But, if it looks pristine, it doesn't necessarily mean it's healthy. Hence, the multimeter's grand entrance.

We're going to focus on a simplified method that gives you a good indication of whether your MOSFET is functioning. There are more rigorous tests involving specific voltage and current measurements, but this is a great starting point for most hobbyists and DIYers. Let's get started!

Gathering Your Tools

2. Preparing for the MOSFET Examination

The star of our show is, of course, your multimeter. Make sure it's set to diode test mode. This mode sends a small voltage across the MOSFET, allowing us to check the junctions within. If your multimeter doesn't have a dedicated diode test mode, a resistance mode (measuring Ohms) can often provide useful information as well, though it's generally less precise. Also, make sure your multimeter's battery is in good shape; a weak battery can lead to inaccurate readings — nobody wants that!

It's always a good idea to have the MOSFET's datasheet handy. You can usually find these online by searching for the MOSFET's part number. The datasheet will tell you the pinout, which is crucial for knowing which pins are the gate, drain, and source (or emitter, collector, and base for bipolar transistors). Trust me, poking around randomly is not a good strategy.

Static electricity is the silent killer of MOSFETs. To avoid accidentally damaging a perfectly good MOSFET, ground yourself before handling it. You can use an anti-static wrist strap, or simply touch a grounded metal object. This will discharge any static electricity you might be carrying.

Also, it's best to remove the MOSFET from the circuit board if possible. Testing it in-circuit can lead to inaccurate readings due to other components interfering with the measurements. If you can't remove it, be extra cautious and aware that the readings may not be definitive.

The Diode Test

3. Performing the MOSFET Diode Test

Alright, with your multimeter in diode test mode (or resistance mode if you don't have diode test), let's dive into the test. Remember that MOSFETs have three terminals: Gate (G), Drain (D), and Source (S). The diode test checks the junctions between these terminals.

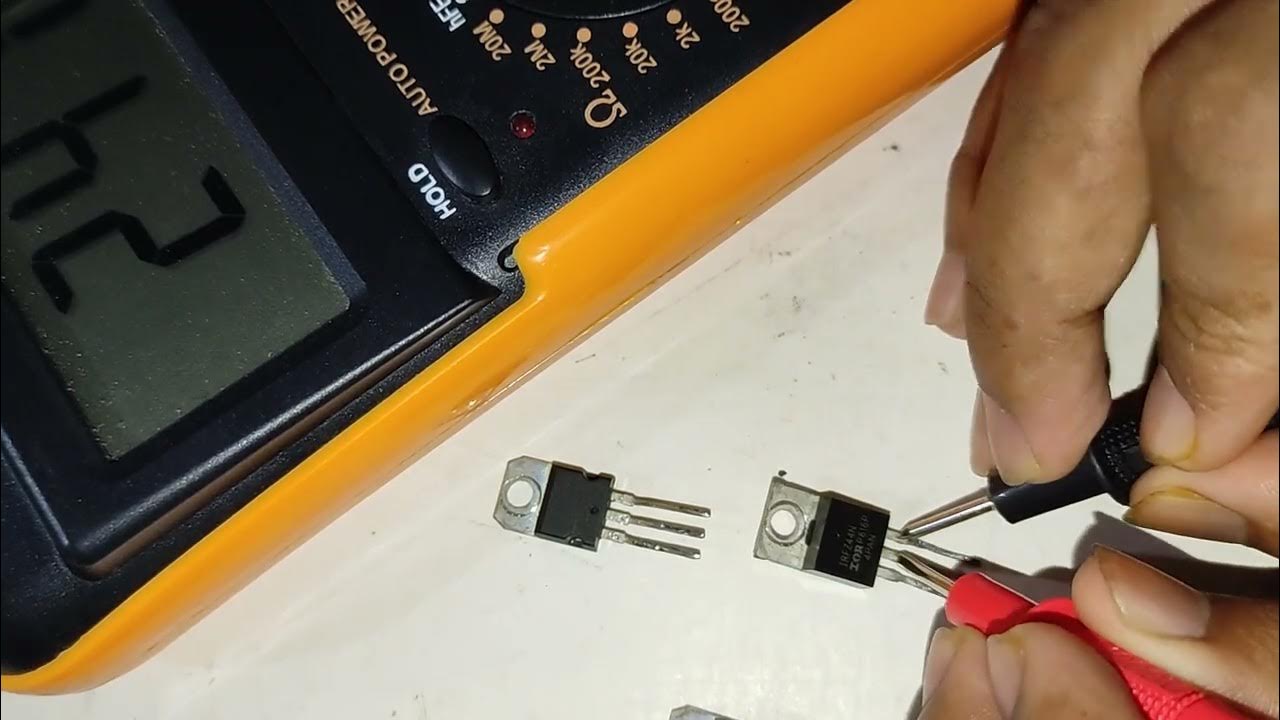

First, put the red probe on the source (S) and the black probe on the drain (D). You should see something like an open circuit (OL on many multimeters) or a very high resistance. Now, reverse the probes (black on source, red on drain). You should see a voltage drop, typically between 0.4V and 0.8V (or a low resistance reading if you're using resistance mode). This is the body diode within the MOSFET, and it's important that this diode is present and functioning.

Next, touch the gate (G) with your finger for a second or so, then quickly move the red probe back to the drain (D), leaving the black probe on the source (S). The multimeter reading should change, indicating the gate voltage has turned the MOSFET partially on. This confirms the gate is influencing the channel conductivity. Note, this is not 100% foolproof, and some MOSFETs require a higher gate voltage to switch effectively.

Finally, repeat the process by touching the gate to discharge it, then measure again. The voltage or resistance reading should revert back to its original value. If you observe different readings each time you touch the gate and measure, that suggests the MOSFET is somewhat functional. If all you're seeing is short circuit or open circuit, the MOSFET may be damaged.

Interpreting the Results

4. Deciphering the Multimeter's Verdict

So, what does it all mean? If you saw a voltage drop in one direction between the source and drain, and close to an open circuit in the other direction, that's a good sign. It suggests the body diode is working properly. Also, if the gate 'trick' worked and you were able to influence the measurement between the source and drain, that's another good hint.

However, if you see a short circuit (near zero resistance) between any two pins, especially between the gate and source, the MOSFET is likely toast. A short circuit indicates that the internal insulation has broken down. Similarly, if you see an open circuit between all the pins, it could indicate that the MOSFET is completely dead. But before condemning it, double-check your connections and ensure your multimeter is functioning correctly.

Keep in mind that this is a simplified test. It doesn't guarantee that the MOSFET will perform optimally under all conditions. Factors like switching speed and on-resistance can only be accurately measured with more sophisticated equipment. However, it's a great way to quickly identify obvious failures. To be 100% certain, you might need to test it in a known-good circuit or use a dedicated component tester.

If you're still unsure, try comparing your measurements to those of a known-good MOSFET of the same type. This can help you identify subtle differences that might indicate a problem. Remember to always discharge the MOSFET before handling it, and be careful not to apply excessive voltage to the gate, as this can damage it.

When in Doubt, Swap It Out!

5. Final Thoughts on MOSFET Troubleshooting

Sometimes, despite your best efforts, the multimeter readings can be inconclusive. Maybe you're getting weird, inconsistent results, or perhaps you're just not confident in your interpretation. In these cases, the best course of action is often simply to replace the MOSFET with a new one. They're relatively inexpensive, and it's often the quickest way to rule out a faulty MOSFET as the cause of your problem.

Before replacing it, though, be sure to investigate why the MOSFET might have failed in the first place. Overvoltage, overcurrent, overheating, and static electricity are all common culprits. Replacing the MOSFET without addressing the underlying cause will likely result in the new one failing as well. Check for short circuits in the surrounding components, ensure proper heat sinking, and always use appropriate ESD precautions.

Troubleshooting electronics can be frustrating, but it's also incredibly rewarding. By learning how to check a MOSFET with a multimeter, you've added a valuable tool to your arsenal. With a little patience and practice, you'll be diagnosing and repairing electronic devices like a pro!

So, go forth and conquer those circuits! And remember, even if you accidentally let the smoke out of a component or two along the way, it's all part of the learning process. Just don't let the smoke out of too many, or your budget might start to suffer.

FAQ

6. Frequently Asked Questions About Checking MOSFETs

Q: Can I check a MOSFET while it's still soldered to the circuit board?
A: It's generally better to remove the MOSFET from the circuit board for testing. Other components in the circuit can interfere with the readings and give you false results. If you absolutely can't remove it, be aware that your readings may not be accurate.

Q: My multimeter doesn't have a diode test mode. What should I do?
A: If your multimeter doesn't have a diode test mode, you can use the resistance mode (measuring Ohms). However, the diode test mode is preferable because it applies a specific voltage across the junction, giving you a more accurate reading. When using resistance mode, look for a low resistance reading in one direction and a high resistance reading in the other.

Q: I get different readings every time I touch the gate. Is that normal?
A: Yes, that's somewhat normal. Touching the gate with your finger can introduce a static charge, which affects the MOSFET's conductivity. This is why the reading changes. It confirms that the gate has some control over the flow of current. However, if the readings are wildly inconsistent or unpredictable, it could indicate a problem.
